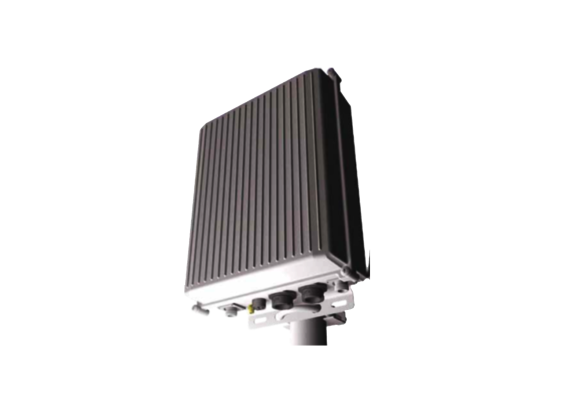

GSM-EDGE Micro BTS​​​​​​​

GSM-RANU​​​​​​​

Electrical
Power consumption: ​​​​​​​52 Watts (2 TRX)
Input voltage:24 VDC

Mechanical

Dimensions:
• 220 mm x280 mm x93 mm•
Weight:
5 kg•
​​​​​​​Mounting options:• Pole, wall, tower

Environmental

Operating temperature:
• -40°C to 55 °C
Storage temperature:
•-40 °C to 70 °C
Rating:• IP67•
​​​​​​​ Cooling:• Passive

Compliance
3GPP TS 04.04
3GPP TS 05.02 - 05.05
3GPP TS 05.08
​​​​​​​3GPP TS 05.10

Logical interfaces
 Abis over IP
 A interface over IP-
Layer-1 SAP

Channel supportTraffic.
• TCH/F+ FACCH/F + SACCH/TF• TCH/H(0,1) + FACCH/H|0,1) + SACCH/H(0,1)
Beacon:FCCH + SCH + BCCH + CCCHFCCH + SCH + BCCH + CCCH + SDCCH/4(0.3) +SACCH/C4(0.3)SDCCH/8 (0.7) + SACCH/C8(0.7)
Packet switching:+ CS-1 to CS-4 encoding- MGS-1 to MCS-9 encoding
Speech format- AMR, HR, FR, EFR
Encryption:+ A5/1, A5/2, 8 A5/3

Maximum output power:10 Watts
Output level setting: 1 dB steps
* Clock accuracy:€ 0.05 ppm
Sensitivity:-109 dBm

Physical interfaces•
Rx Antenna:•
Type-N•
Tx antenna:•
Type-N•
GPS antenna:SMA.

Traffi c and control:

 10/100 Mbps Etheret RJ45
