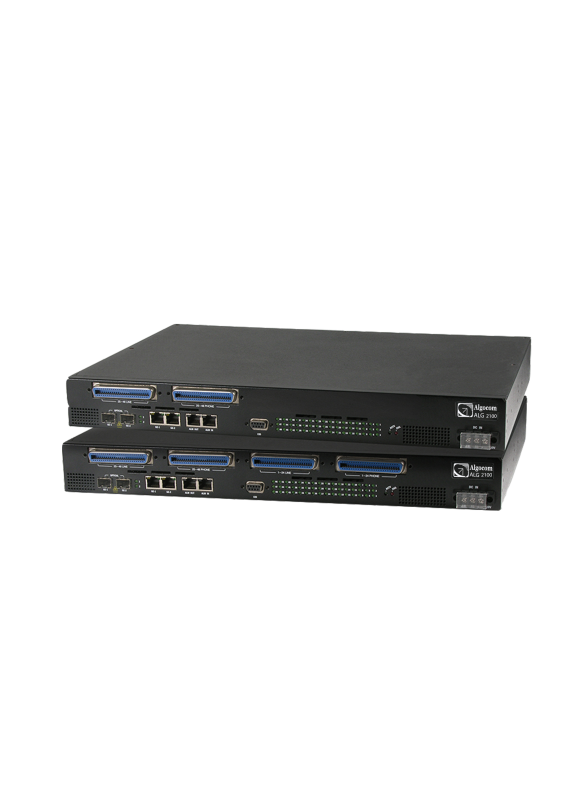

ISAP-2100
IP based DSLAM (Digital subscriber line access Multiplexer)
Compact design in nearly one RU Height unit
Service capacity expansion via units stacking
Two 100/1000Base Combo Gigabit Ethernet uplink network interfaces
24/48-ADSL2+ ports with or without built-in POTS Splitter
Non-blocking switching fabric and wire-speed switching capability
On board LEDs for system status indications
Dual power supply modes, DC and AC
High reliability design
SELT Subscriber Loop testing
Subscriber traffic isolation among ADSL2+ line ports
Subscriber rate limiting
Configurable mapping between VLAN tag and ATM PVC RFC 2684 multi-protocol over AAL5, RFC 2516 PPPoE packet forwarding
QoS for IEEE 802.1p priority queues
OAM F5 fault diagnostic
IEEE 802.1D spanning tree bridging
IEEE 802.1Q VLAN tagging
IEEE 802.3ad link aggregation on network interface
IGMP snooping/proxy
Windows based and GUI management system with different user access levels
Remote system configuration by using Telnet, SNMP v1/v2c management
In-band management channel
Internet Service
Virtual Private Network Service

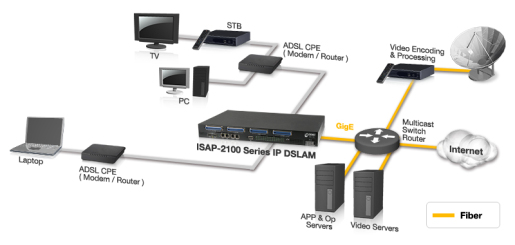

With the ADSL CPE connecting to ISAP-2100 Series, packets will be encapsulated in accordance with QoS to optimize connection quality
ISAP-2100 Series IP-DSLAM has ability transmit the protocols from VDSL/ADSL CPE or end user PC to service applications such as PPPoE (RFC 2516), RFC 2684 Bridge, and L2TP, L2F, PPTP, IP-Sec. tunneling
ISAP-2100 Series IP-DSLAM has ability to convey transparently the protocols from ADSL CPE or end user PC to service applications such as PPPoE (RFC 2516), RFC 2684 Bridge, and L2TP, L2F, PPTP, IP-Sec. tunneling
The ISP is offering VPN (Virtual Private Network) service to corporations
The retail business is currently selling only high-speed Internet access to residential consumers but wants to offer some value-add services to the current offerings with the proper device supporting the VPN applications for small-to-medium business.
ISAP-2100 Series transfers their tunnel protocol to upper layer broadband router securely
